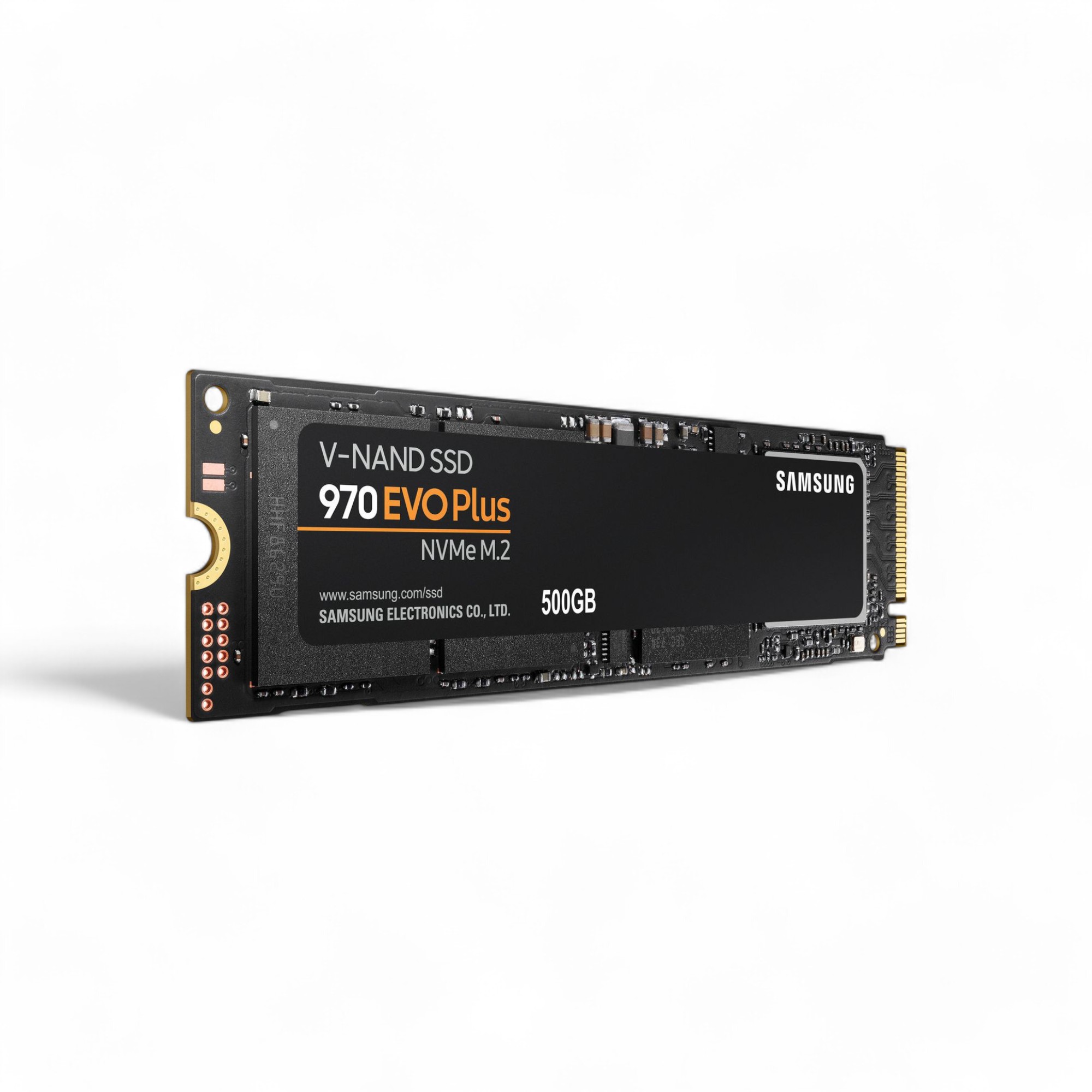

Samsung 500GB, M.2, PCIe Gen 3.0 x 4, NVMe 1.3, 970 Evo Plus

SKU: MZ-V7S500BW Categories: , Tags: ,

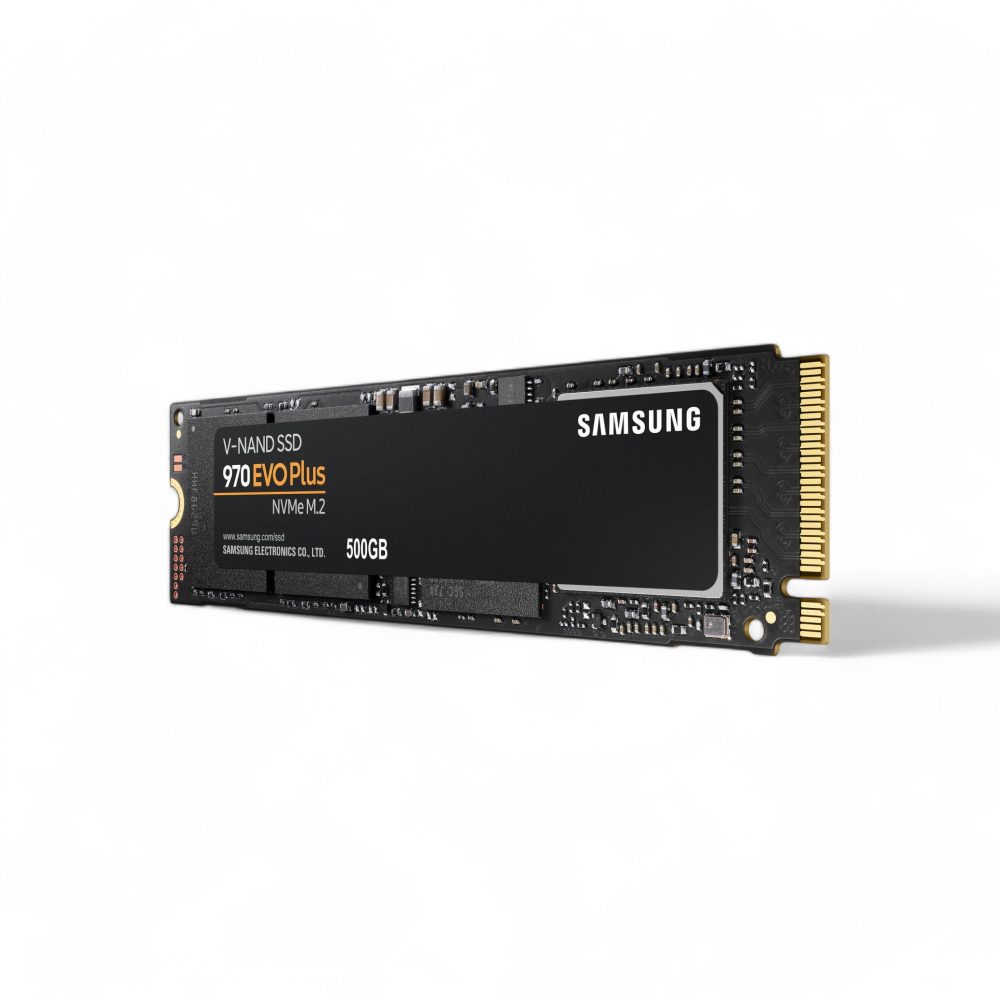

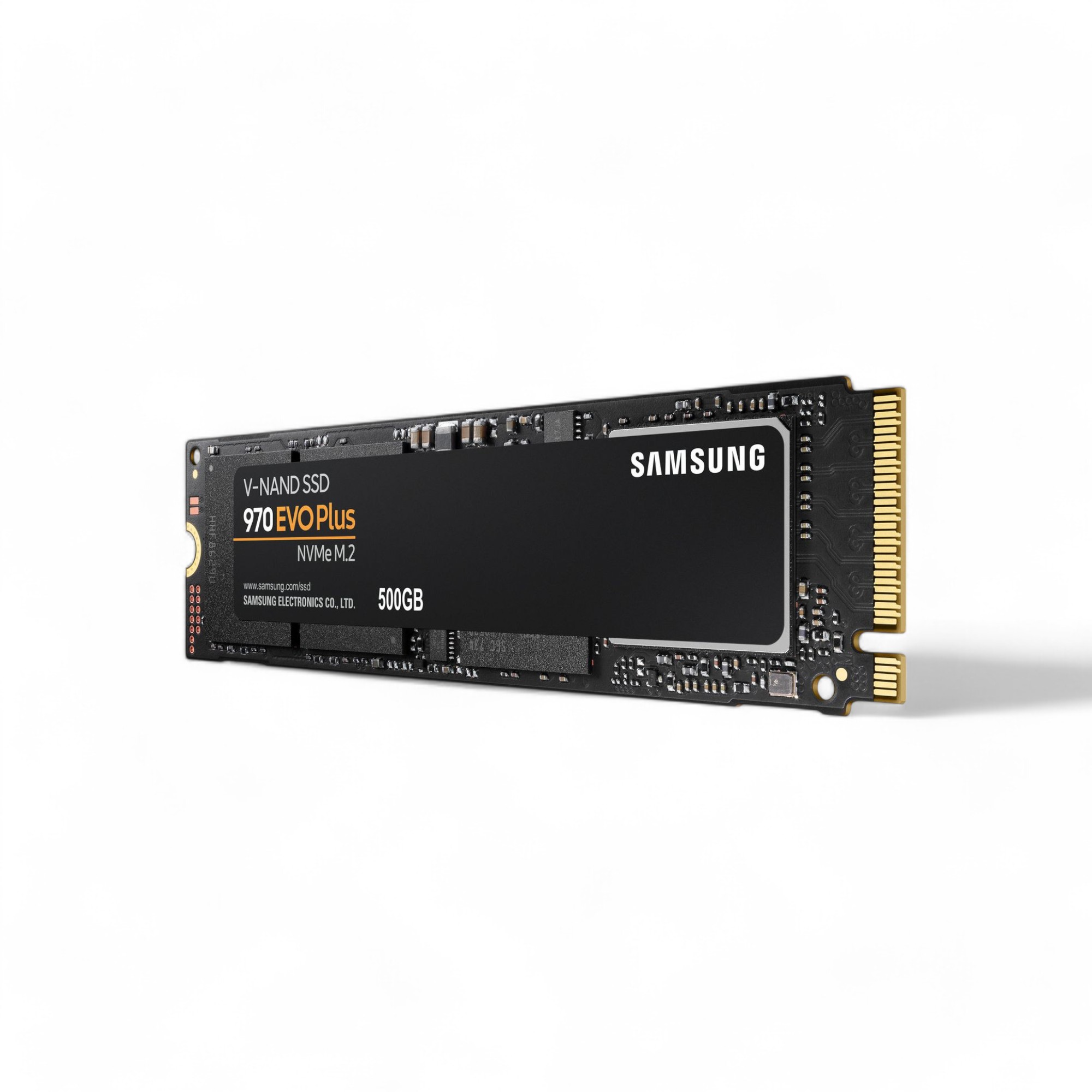

SAMSUNG 970EVO PLUS V-NAND SSD

500GB, M.2, PCIe Gen 3.0 x 4, NVMe 1.3

Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.

Level Up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven Phoenix controller and Intelligent TurboWrite boost.

Design Flexibility

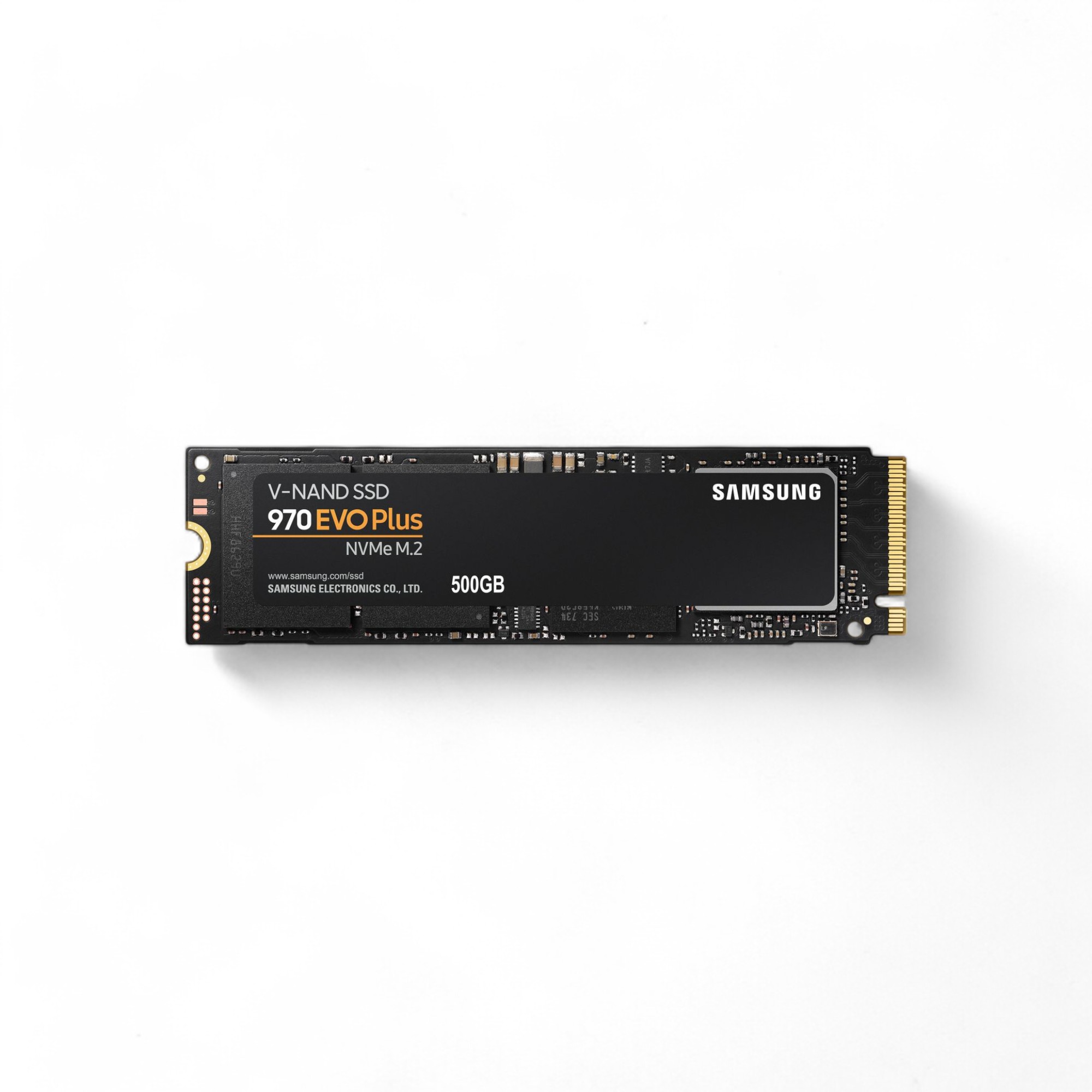

The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.


⇢ Download DATA SHEET

⇢ Download User’s Manual

Download Installation Guide




Specifications for MZ-V7S500BW
Features
Component for PC
Controller type Samsung Phoenix
DevSlp (device sleep) support Yes
Hardware encryption Yes
Harmonized System (HS) code 84717070
Interface PCI Express 3.0
M.2 SSD size 2280 (22 x 80 mm)
Mean time between failures (MTBF) 1500000 Hour
Memory type V-NAND MLC
NVMe Yes
NVMe version 1.3
PCI Express interface data lanes x4
Random read (4KB) 250000 IOPS
Random write (4KB) 550000 IOPS
Read speed 3500 MB/s
S.M.A.R.T. support Yes
Security algorithms 256-bit AES
SSD capacity 500 GB
SSD form factor M.2
TRIM support Yes
Write speed 2300 MB/s
Logistics data
Harmonized System (HS) code 84717070
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Other features
Launch date 1/22/2019
Package dimensions (verified)
Depth Verified 10 cm
Gross Weight Verified 0.078 kg
Height Verified 2.4 cm
Width Verified 14.5 cm
Packaging data
Bundled software Magician Software for SSD management
Power
Operating voltage 3.3 V
Power consumption (average) 5 Watt
Power consumption (idle) 0.003 Watt
Power consumption (max) 8 Watt
Product dimensions
Net Weight (Product, kg) 0.068 kg
Product Depth 2.3 cm
Product Height 2.2 cm
Product Width 8 cm
Vendor information
Brand Name Samsung
Warranty 3 Month(s)
Categories
Main category Server, Computer & Printer Parts
Subcategory Data Storage Devices
Subcategory Internal Solid State Drives
